Marine CEMS – gas analyzer
ABS Type Approval 19 March 2020

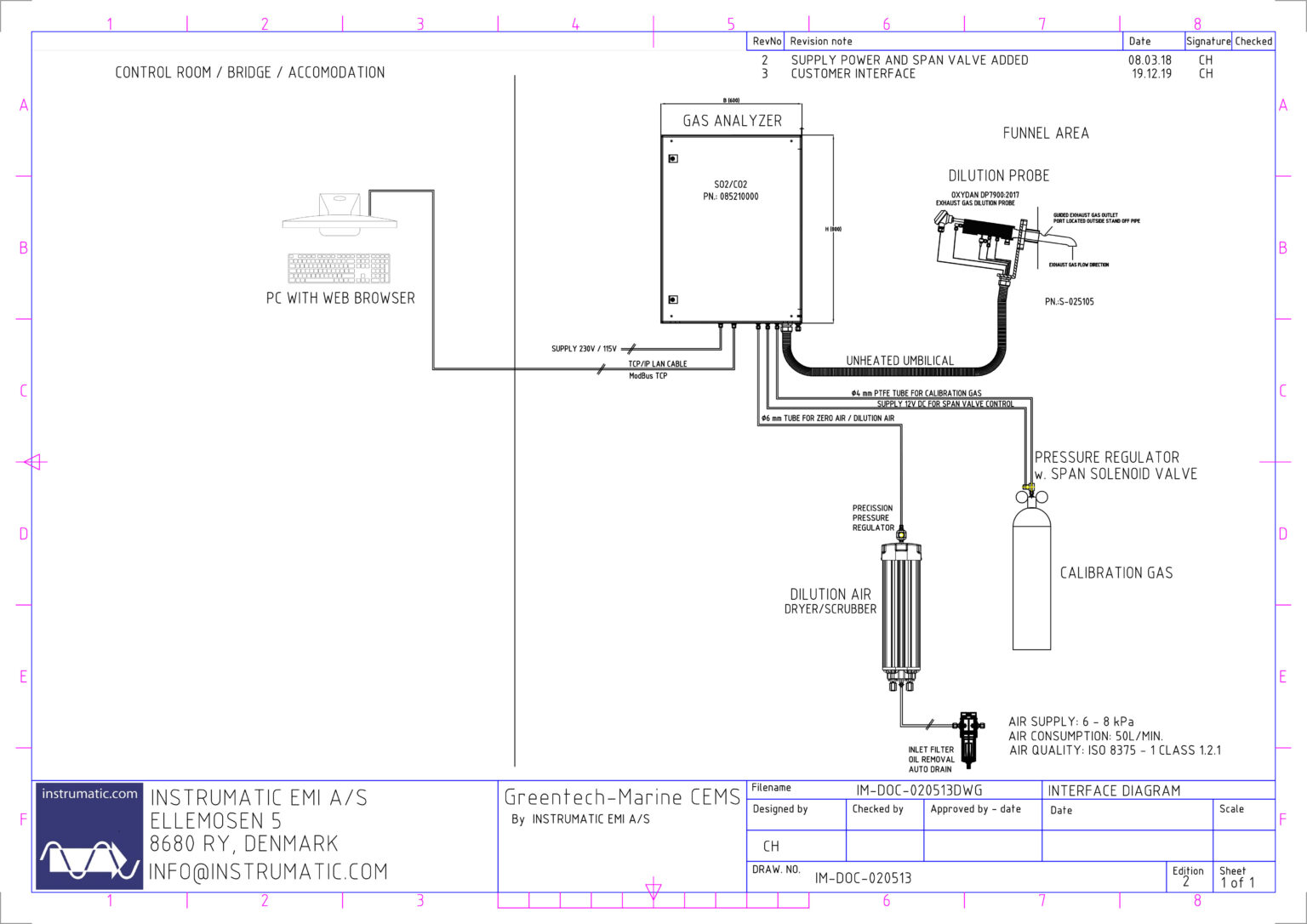

The Compact Marine-CEMS has been designed as a compact system based on +35 years of experience with extractive sampling using dilution probes in combination with an ambient air UV-Fluorescent SO2 and NDIR CO2 analyzers/sensors.
- Unheated sampling lines
- No moving parts
- Long maintenance intervals
Monitoring your emissions directly in the exhaust is the most reliable, efficient, and cost-effective method to prove you are complying with applicable legislation in the given area.
The Marine-CEMS System is specifically designed to meet the stringent standards associated with these critical regulatory requirements. And the Marine-CEMS will enable you to pass performance testing in accordance with regulatory standards such as IMO MARPOL ANNEX VI and US-EPA Part 75 or Part 60 as well as their international equivalents.
Specifications
SO2 sensor specifications
- Range
- User selectable from 0 to 5 ppm up to 0 to 2000 ppm. Standard setting 0 to 50 ppm
- Lowest detection limit
- 0.1 ppm (<100 ppb)
- Lag time
- < 10 sec. (from probe tip with 25 meters of umbilical cord).
CO2 sensor specifications
- Range
- User selectable from 0 to 5 % up to 0 to 20 %. Standard setting 0 to 12%
- Lower detection limit
- 0.1 %
- Lag time
- < 10 sec. (from probe tip with 25 meters of umbilical cord).
NOx sensor specifications (optional)
- Range
- User selectable from 0 to 50 ppm up to 0 to 2000 ppm. Standard setting 0 to 1000 ppm
- Lower detection limit
- 1 ppm
- Lag time
- < 5 sec
Probe
- Temperature range
- Ambient: -10 to 85° C. / Process standard 500° C.
- Junction box
- IP65
- Dimensions
- 300(H) mm x 250(W) mm x 500(L) mm.
- Weight
- 8 Kgs.
- Standard flange
- DN65 PN6 / IMO Standard Flange
System cabinet
- Temperature range
- 5 – 55° C.
- Communication
- Modbus TCP/IP, Ethernet (standard)
- Outputs
- 4 – 20 mA (optional)
- Status output
- SPDT-contact closure for common alarm.
- Enclosure
- IP54
- Dimensions
- 800(H) mm x 600(W) mm x 250(D) mm.
- Weight
- 40 Kgs.
Power and air supply
- Power supply
- 240V AC / 110 VAC (50 – 60 Hz.)
- Power consumption
- 1 sample point: Max 400 W (Heated @ 20% duty cycle average 140W)
- Power consumption
- 2 sample points: Max 700 W (Heated @ 20% duty cycle average 300W)
- Power connection
- Line / Neutral + Protective Earth
- Air supply
- Min. pressure 700 kPa (7 bar) compressed air, non-condensing
- Air consumption
- 1 sample point: 30 NLPM. 2 sample points: 40 NLPM with dilution probe.
